Gator Pedal Board Power Supply With 8 Isolated Outputs

The Gator Pedal Board Power Supply features 8 isolated outputs, delivering clean and reliable power to multiple pedals simultaneously without noise interference. Its isolated design prevents ground loops and signal degradation, ensuring optimal performance for your entire effects setup. Compact and efficient, this power supply is engineered for professional musicians seeking dependable, noise-free power management on stage or in the studio.

• Guitar Effects Pedal Power Supply with 8 Isolated Outputs
• Outputs: 2 x 4~9V DC @ 120mA, 3 x 9/12V @ 120mA, 1 x 9/18V DC @ 250mA, 1 x 9/12V DC @ 250mA, 1 x 12V AC @ 500mA
• Maximum Output Current: 1600mA
• AC Power Input with Switchable Voltage Between 115V/240V (50-60Hz) for International Use
• Voltage Adjustable via DIP Switch & SAG Knobs (min 4V - max 9V)
• Heavy-Duty All Metal Enclosure with Slotted Vents for Heat Dissipation

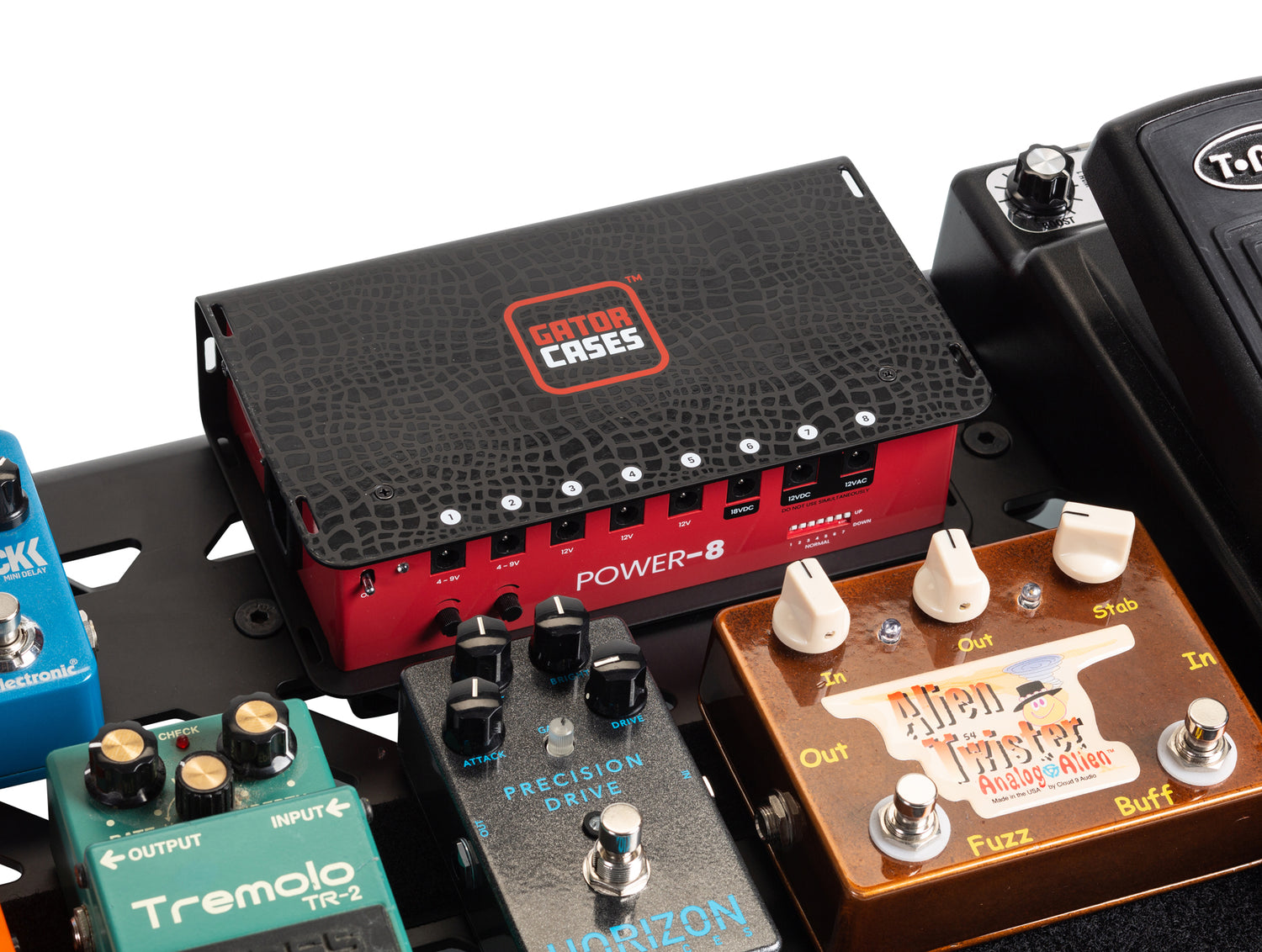

• Integrated Slots Allow for Direct Mounting to Pedal Board
• On/Off Power Switch with LED Indicator Light

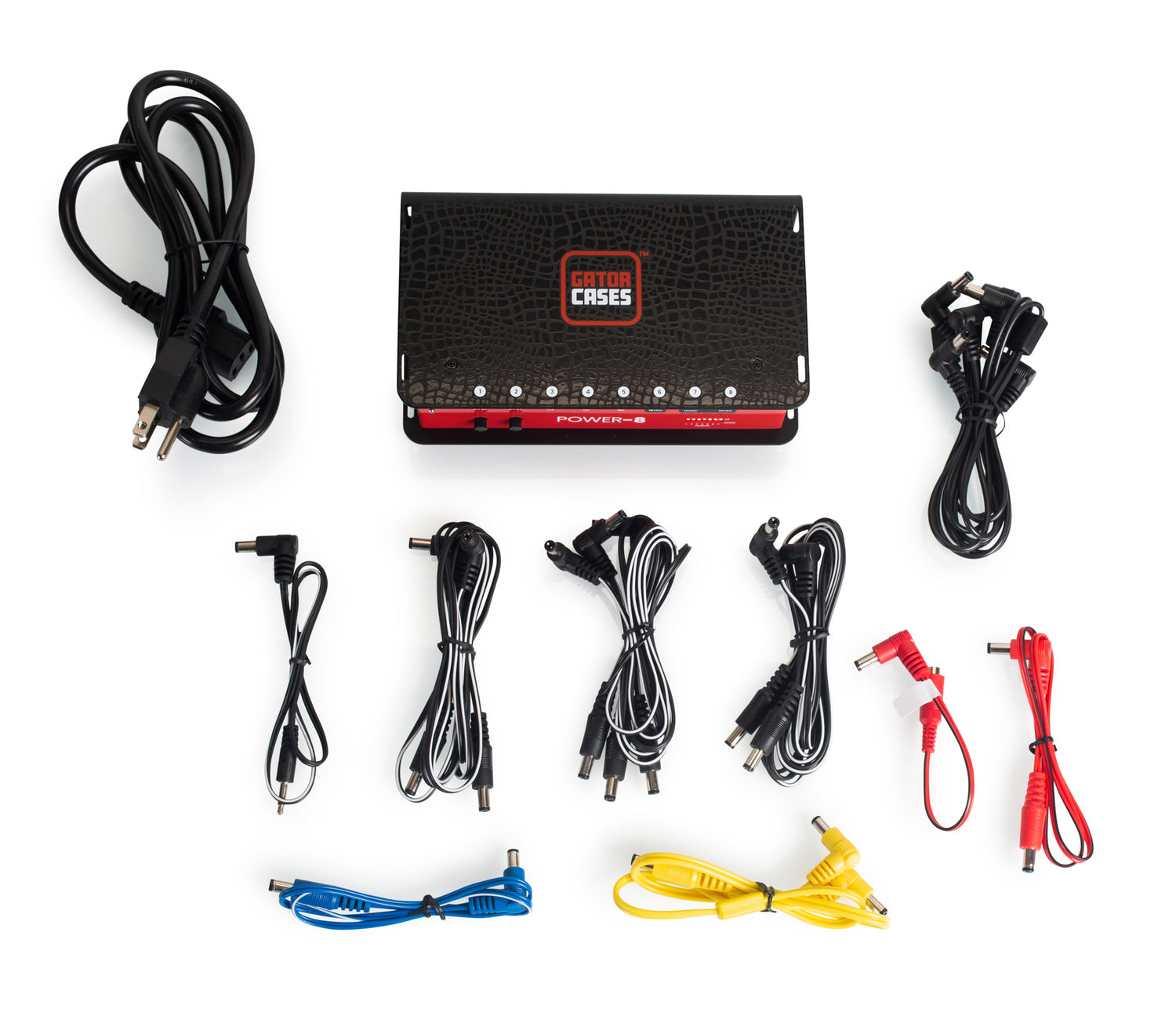

• Includes (x1) Power Cable, (x8) DC Power Cables, (x1) AC Power Cable, (x1) Polarity Inverter Cable, (x1) Voltage Doubler Cable, (x1) Mini Jack Cable
• Product Dimensions: 7.28”/185mm (L) x 4.25”/108mm (W) x 1.93”/49mm (H), Net Weight: 3 lbs./1.36 kg

• Length 0.00"

  Width 0.00"

  Height 0.00"

• • Model: GTR-PWR-8
  • UPC: 716408551531
