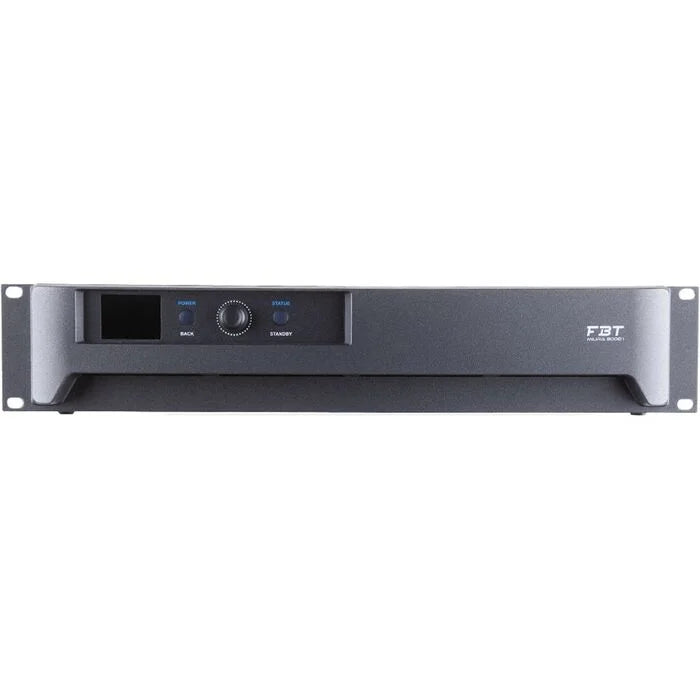

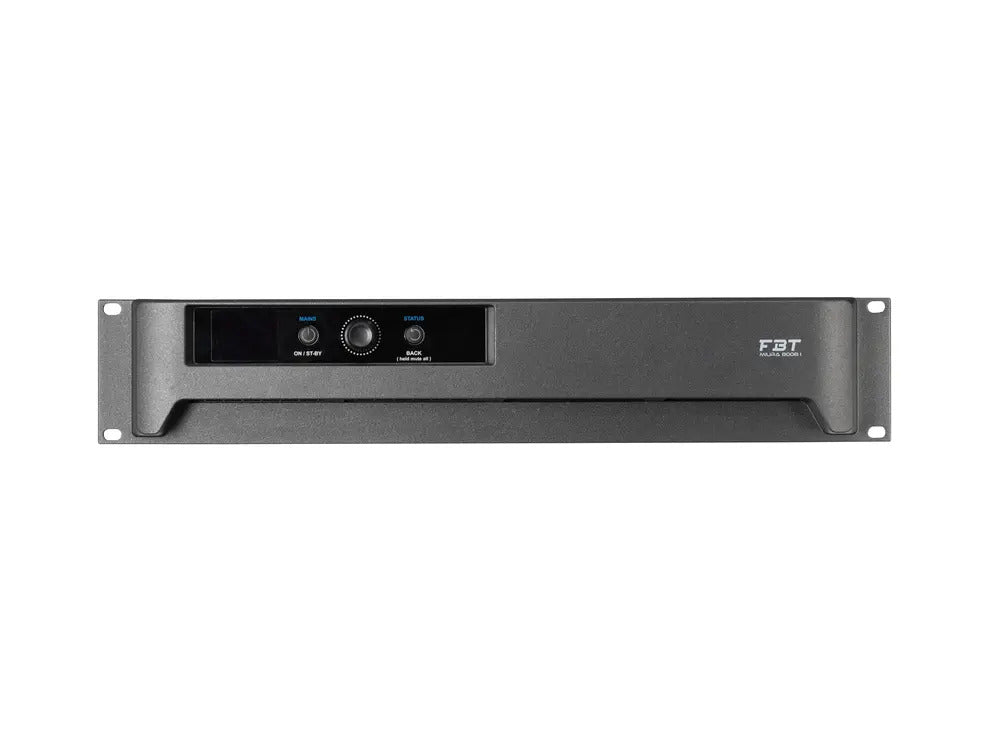

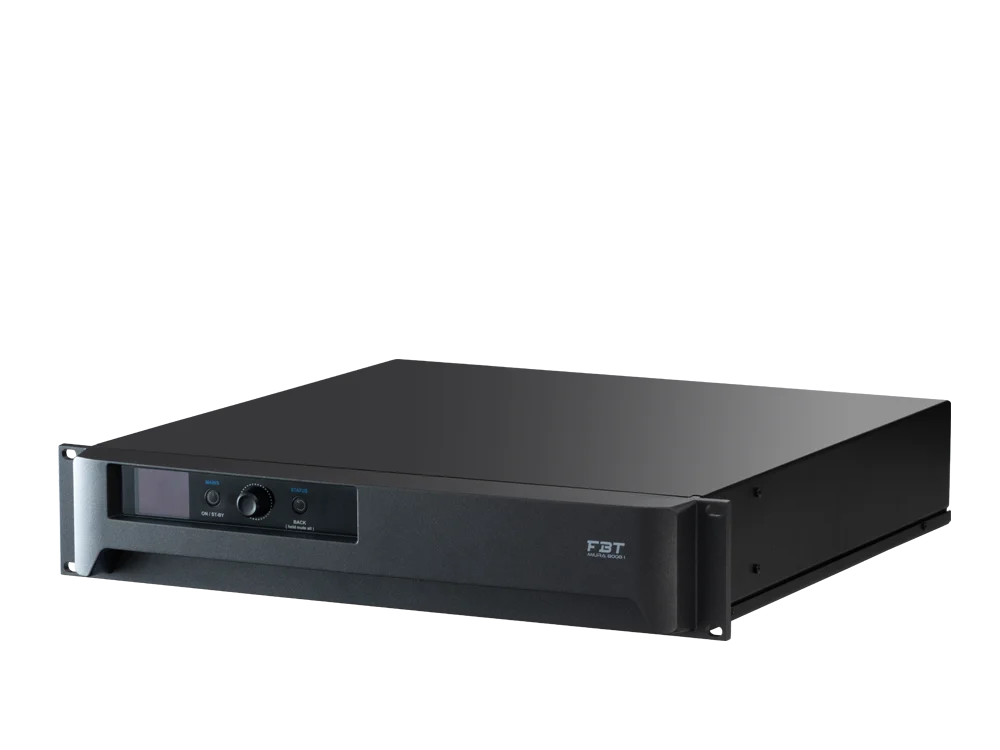

FBT MIURA 8008I Digital Amplifier

The MIURA 8008I is a high-power, 8-channel Class D amplifier designed for fixed installations requiring flexibility, precision, and reliable high-output performance. Delivering up to 8×1000W at 4Ω, or 4×2000W at 100V in bridge mode, it supports both low-impedance (4/8/16Ω) and high-impedance (70/100V) lines with full asymmetric power distribution. Integrated Dante audio streaming (4 channels) and TCP/IP control (AES70 compatible) via EtherCON ports allow seamless integration into networked systems through INFINITO software. The amplifier also features AES3 digital inputs with link, to ensure compatibility with professional-grade systems. A front OLED display with encoder ensures onboard setup, while Euroblock I/O, GPIO, and comprehensive protection features guarantee safe, long-term operation in demanding installation environments.

• 8×1000W at 4Ω – 8×900W at 70V – 4×2000W at 100V BTL

• Class D architecture with ultra-low distortion

• 4-channel Dante receiver (24bit, 48–96kHz)

• TCP/IP AES70 control via INFINITO software

• Universal PSU with PFC, auto-standby, and high transient response

• Asymmetric loading per channel, with SE/BTL/Parallel modes

• Screw-type Euroblock I/O, 8-channel GPIO, EtherCON network ports

• • Audio Performance
    • Power Output (8Ω): 750W (cont.), 1200W (impulsive)
    • Power Output (4Ω): 1000W (cont.), 1500W (impulsive)
    • Bridge Mode (8Ω): 3000W
    • Frequency Response: 20Hz – 20kHz (±0.5 dB)
    • THD (1kHz @ 4Ω): < 0.05%
    • SNR: >106 dB (A-weighted)
    • Input Impedance: 10 kΩ
    • Damping Factor: >500
    • Amplifier Class: Class-D, PWM modulation
  • Connectivity

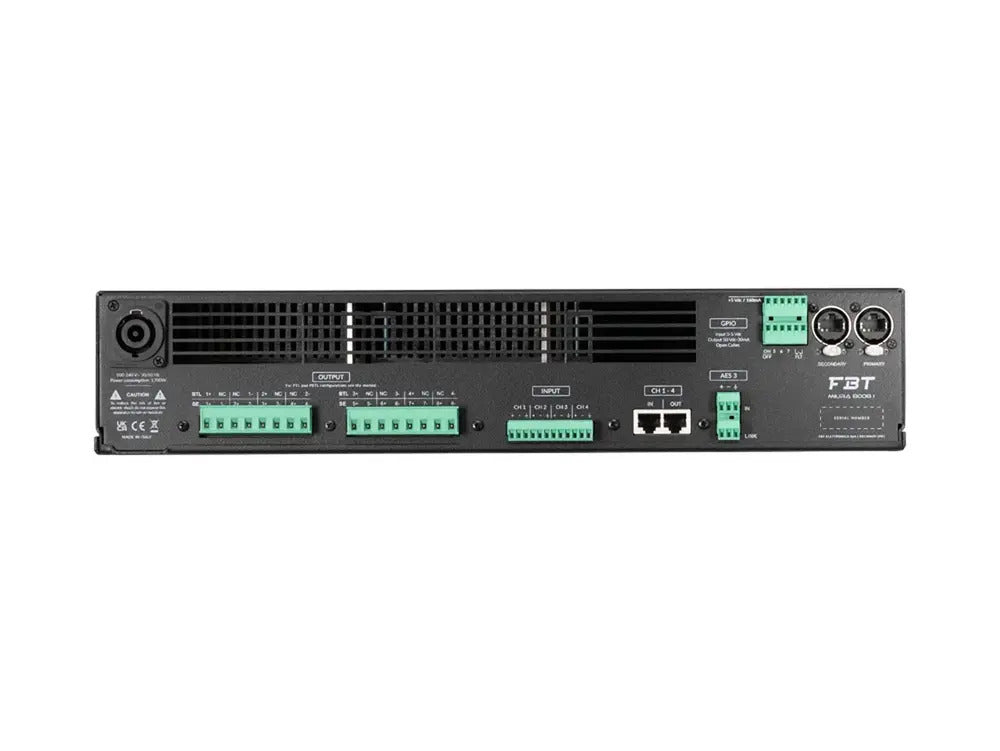

    • Inputs/Outputs: Euroblock (Balanced Input, Speaker Output, GPIO)
    • Network: Ethernet (INFINITO Suite, Dante, AES70)
  • Power & Protection
    • Supply: 100–240V AC, 50/60Hz (PFC)
    • Protection: Short circuit, over-temp, under/over-voltage, overload
  • Physical
    • Dimensions: 19 x 9.1 x 3.5 in (2U)
