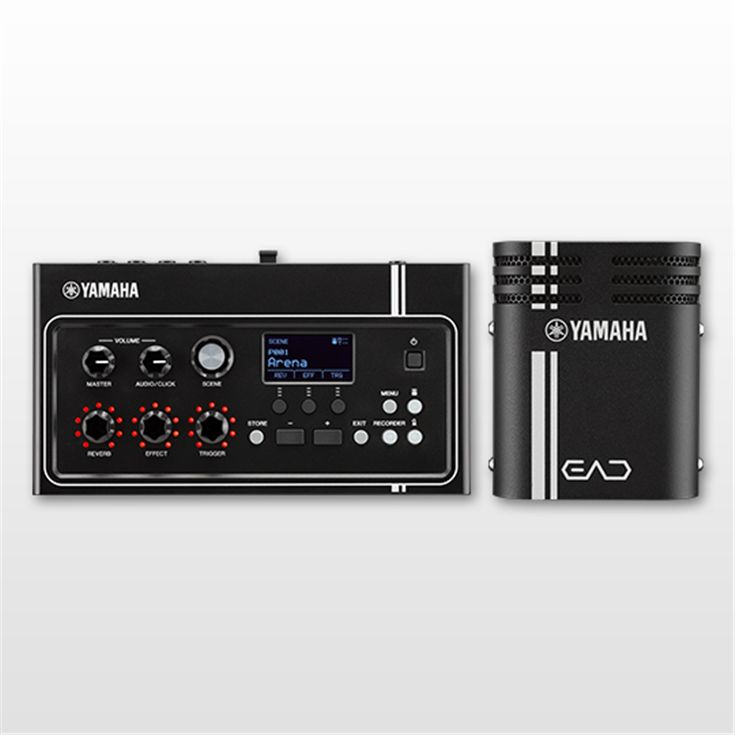

Yamaha EAD10 Electronic Acoustic Drum Module

The EAD10 simplifies a complicated setup that typically requires microphones, cables, mixers and PA expertise. Just attach the EAD10 sensor unit to any acoustic bass drum and you will have a high-quality stereo image of your entire kit. It allows you to play along with your favorite artists, record your acoustic drums and share it digitally.

With the free iOS/Android app you can shoot, edit and upload videos of your drum performances.

The EAD10 enhances every aspect of your drumming - the way you practice, record and perform live, and it makes your acoustic drums do more.

Sensor Unit

The sensor unit of the EAD10 comprises a specially developed XY stereo microphone sensor and trigger sensors, allowing you to capture a balanced recording of the entire kit by placing this at the center of the kit itself.

The microphone capsule is a newly-developed microphone that comes equipped with the ultra-high sound pressure resistance and strong noise resistance suitable for recording drums. The entire sensor unit, including the grill that covers the microphone capsule, incorporates an acoustical design that allows for the adjustment of directivity and frequency characteristics. The preamplifier is equipped with custom parts, and the mic itself is designed to draw out the maximum dynamic range of a drum kit while achieving the balance ideal for recording, allowing for clear, dynamic sounds.

Additionally, the range of sounds that can be created has been greatly expanded, using the trigger sensor to combine bass drum sounds with a PCM sound source.

The EAD10 has achieved both simplicity and quality by combining technologies that can only be developed by a comprehensive manufacturer.

The Main Unit

The main unit of EAD10 is designed with ease of use in mind.

The left side of the main unit comes equipped with large knobs that can easily be adjusted mid-performance, so that the main control functions like volume and preset scene can be accessed easily. LED indicators have been added to the preset scene controls of reverb, effect, and trigger to make them more visible. This allows for understanding of current settings as well as quick and intuitive adjustment on even the darkest of stages. The buttons and LCD display on the right allow for even more detailed adjustments.

Additionally, a high-performance headphone amplifier was also developed specifically for this unit, and delivers power and performance that cannot be outdone by the dynamic sounds of acoustic drums.

It also comes equipped with many high-quality effects and PCM sound sources used in Yamaha electronic musical instruments. Furthermore, by using the trigger sensing technology from electronic drums, it creates added value for acoustic drums, making them into a completely new musical instrument.

Mechanism of the EAD10

The EAD10 can capture the sounds of an entire drum kit and monitor them at a high quality just by attaching the sensor to the bass drum. By simply turning the knob on the module, you can control various effects and change the drum sound.

Connect with Smart Device/App

The EAD10 can be played with your favorite music from smart devices via an AUX cable or USB cable connection.

Using the free Android/iOS Rec'n'Share app, you can practice by adding a metronome to your favorite music, record audio, record video, edit, and upload to SNS right from your drum kit. Also, if you have a USB flash drive, you can record your own drum performance for up to 90 minutes.

EAD10 with Live Scene

Quickly add your drums to the mix with just two cables.

Add Trigger & Pad

The EAD10 can connect to a maximum of six triggers and pads, including the bass drum trigger of the sensor, to augment your kit with percussion, electronic sounds and loops and expand the range of expression.

Talkback Function

A player's voice can be captured by the microphone of the unit sensor by operating the Mic button on the module or by using the pedal. This makes it perfect for video creation and web lessons.

Using the EAD10 with a Mesh Drum Kit

Combining the EAD10 with a low-volume drum kit using mesh heads and low-volume cymbals, leads to the birth of an entirely new drum kit. Playing PCM sound with triggers attached to each drum and capturing the raw sound of the cymbal from the sensor, allows a low-volume experience while realistic drum sounds are output through the headphones and speakers. Settings resembling that of a real drum kit lend themselves to the production of a performance that feels more real than ever before and is easily recorded with the module or Rec'n'Share app.

• 50 preset/200 user Scenes transform your acoustic drum sounds dynamically.
• Attach the EAD10 to the bass drum, and you can pick up the entire kit
• With the free Android/iOS app, you can practice, shoot, edit and upload videos of your drum performances.
